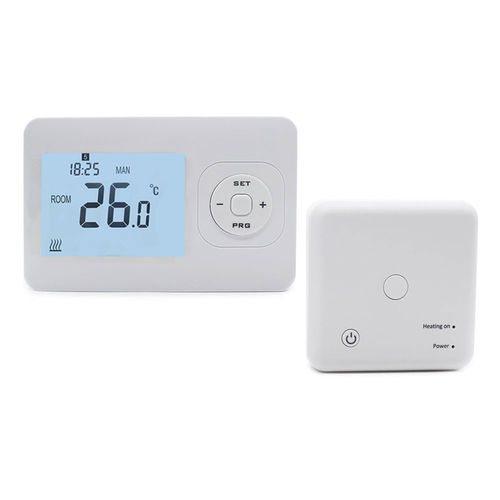

Programmable thermostat HTW-31-WKT13-WF

NONCsurface-mount

This surface-mounted radio thermostat has been developed to be able to switch electric and conventional heating systems on and off using a set temperature and time. Features * Large display can be clearly read with the background lighting. * Easy to fit thermostat and receiver. * Five buttons make it easy to use. * 4 periods of each day programmable * The display shows the set temperature as well as the measured temperature, time. * Temperature display in degrees Celsius. * The thermostat is supplied with a wall-fixing frame, base and a very compact receiver (surface-mounted). Specification Thermostat operating voltage: 2 x AA1.5 V, alkaline batteries. Backup storage: EEPROM Receiver operating voltage: 230 VAC, 50/60 Hz Maximum voltage / (ohmic) load: 250 VAC/10 A. Frequency: 868 MHz Channel selection: By programming the thermostat and the receiver. Switching options: 7day, 4 periods each day. Receiver switch contacts: NO and NC. Temperature settings: 5°C ~ 35°C, 0.5°C increments. Accuracy: +/- 0.5°C Thermostat dimensions: Surface mounted, 135mm x 87.5 mm x 23.2mm. Receiver dimensions: Surface mounted, 86mm x 86 mm Color: White IP protection rating: 20.
