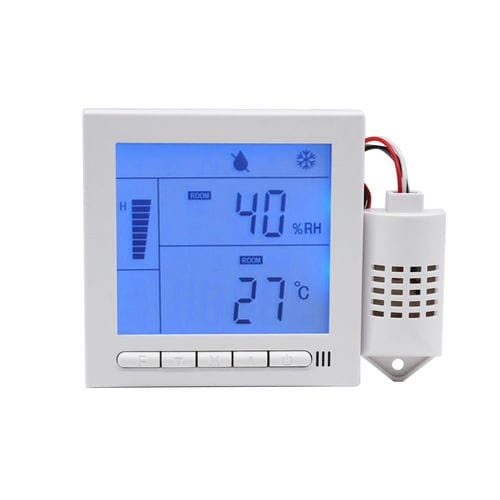

Programmable thermo-hygrostat HTW-61-HT-518electronicwith digital display
Add to favorites
Compare this product
Characteristics
- Type
- electronic
- Other characteristics
- with digital display, programmable
- Humidity range
Max.: 90 %
Min.: 10 %
- Temperature range
Max.: 90 °C
(194 °F)Min.: 5 °C
(41 °F)
Description
HTW-61-HT series Hygrostat + Thermostat uses microcomputer control technology, by detecting humidity/temperature to control fan/ electric valve/humidity equipment, so as to maintain a configurable set-point and humidity.
Feature
lPower Supply:AC110/220/24V/Others optional
lSet-Point and Humidity Configurable
lControl Fan/Motorized valve/Humidifier/Dehumidifier equipment
l Power off memory function
lBlue backlight (Auto off without no operation after 10s)
l 8 time periods programmable.
lTemperature/Humidity display
lModbus-RS485 communication (optional)
Technical Parameter
lPower supply: AC110/220/24V/Others optional
lSet-Point Range：5-35°C /5-90°C configurable.
lSelf-Consumption: <2 W
lHumidity Setting range：10-90%RH
lHumidity display range: 0-99%RH
lResolution: temperature 1°C , humidity 1%RH
lAccuracy:±1°C, Humidity ±5% RH
l Output Contact Capacity: AC220V/5A;
l Appearance size: 86* 86*15 mm,Installation hole distance: 60 mm
