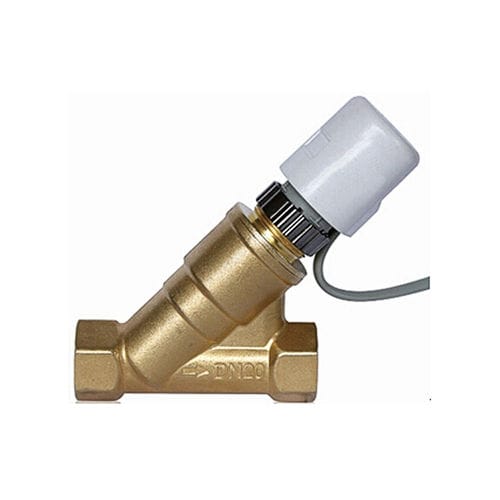

Balancing valve HTW-71-DV series
ballelectricpressure-control

balancing valve
balancing valve
Add to favorites
Compare this product


Characteristics

Type
ball
Operation
electric
Function
pressure-control, temperature control
Media
for water
Body
angle seat, IP54
Applications
HVAC
Associated function
balancing
DN

20 mm, 25 mm
(0.787 in, 0.984 in)

Pressure

1.6 MPa

Temperature

Max.: 95 °C
(203 °F)

Min.: 5 °C
(41 °F)

Flow rate

0.9 m³/h, 1.1 m³/h
(31.78 ft³/h, 38.85 ft³/h)

Description

HTW-71-DV Series electric dynamic pressure balance valve is a dynamic equilibrium with the electric control integration products, mainly for air-conditioning equipment, HVAC system at the end (such as air box, new air handling units, air handlers) temperature control, intelligent modules configured to control devices on the loop can easily flow, automatic temperature control, to achieve rational use of energy, energy saving, intelligent management. Specification Power supply:AC230V(220V) Power consumption:2VA Thrust:110N Stroke:3mm Full travel time:3-5min Connection:M30x1.5mm Screw Ambient temperature:-5 to 60℃ Shell Material:Fir proof PC(Inner material is Fir proof PA66) Shell Protection grade:IP54
