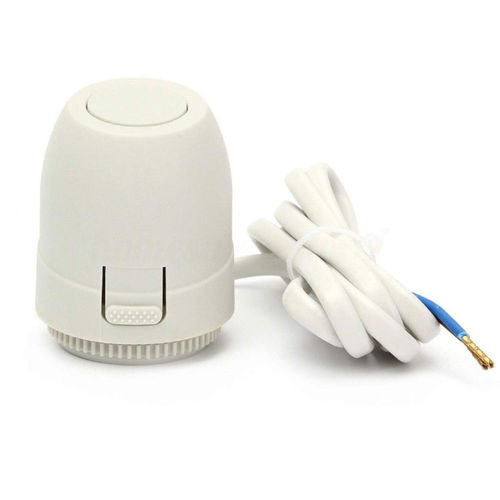

Thermal valve actuator HTW-TAV-01electriclinearIP54
Add to favorites
Compare this product
Characteristics
- Type
- electric
- Movement
- linear
- Protection class
- IP54
- Other characteristics
- thermal
- Actuator force
Max.: 105 N
Min.: 95 N
- Stroke
Max.: 5 mm
(0.2 in)Min.: 4.5 mm
(0.2 in)- Voltage
24 V, 230 V
- Power
2 W
(0 hp)- Ambient temperature
Max.: 60 °C
(140 °F)Min.: 0 °C
(32 °F)- Operating time
180 s
Description
HTW-TAV01 Series thermal actuators are signed for controlling control valves in HVAC automation systems. The thermal actuator can be controlled by 230Vac/24 Vac on/off control signal or PWM signal.
The following figures illustrate the function principles of the thermal actuators.
Specification
Supply 230V/24V, 50/60Hz
Power consumption 2 W
Operating current 50 mA
Start-up current < 300 mA (max. 2 min.)
Force 95…105 N
Stroke ≥4.5~5.0mm
Running time approx. 180s (close / open)
Mounting by using an adapter ring (included)
Fluid temperature 0…100 °C
Ambient temperature 0…60 °C
Housing IP54, polyamide
