Rockwell hardness tester Link RBDBrinellbenchtopmetal
Add to favorites
Compare this product
Characteristics
- Type
- Rockwell, Brinell
- Mounting
- benchtop
- Product applications
- metal, for steel, for aluminum, for laboratories, copper, for stainless steel, for laboratory applications, for metal sheets
- Other characteristics
- digital, hydraulic
- Useful height
170 mm
(6.7 in)- Useful width
165 mm
(6.5 in)- Weight
100 kg
(220.5 lb)
Description

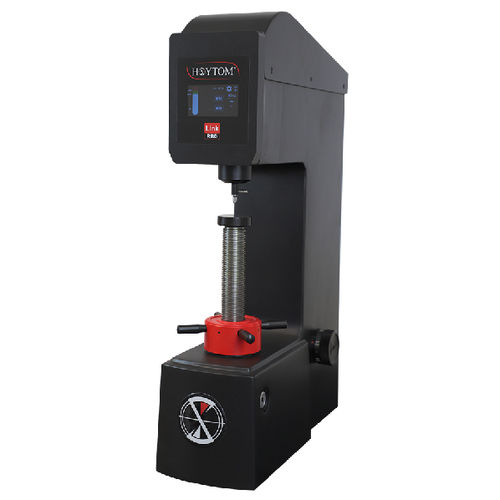

The Link RBD model is a Rockwell hardness tester that is capable of applying loads of 60, 100 and 150 Kg. It also has additional loads for Brinell tests (31.25, 62.5 y 187.5 Kg.
Loads are applied via a motor. Loads are easy to select using a rotary controller, and application speed is controlled via motor. Data display via touch screen.
Selectable Rockwell and Brinell loads
Load selection via rotary controller
Loads applied via motor
Resolution: 0.01 HRC/HRB...
Conversions between different methods
Built-in room temperature thermometer
Touch screen
USB data output for integration into customer’s test programme
Simple and intuitive operation
