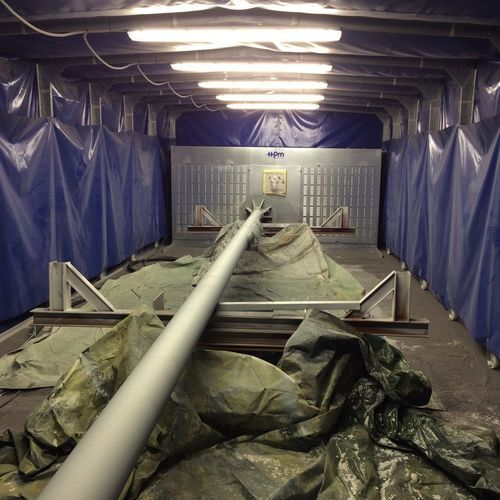

Wet blast cabinet SPACE X

manualinflatablefor the automotive industry

Dim. useful internal: mt 10 (length) x 4 (width) x 2,3H* Dim. external open: mt 11 (length) x 4,2 (width) x 2,6H* Dim. external retracted: mt 1.9 (length) x 5 (width) x 2.6H** these dimensions do not include the duct for emissions into the atmosphere Compactable manually by 2 operators - ASSEMBLED TRANSPORTABLE VERSION, MOVEABLE WITH FORKLIFT Complete with: extensible/retractable containmentstructure built in galvanized tubular arches, connected to each other with pantographs, sliding on PVC wheels cover custom designed in double coated PVC tarpaulin, self-extinguishing cl.2 front meshes for air intake complete with perimeter Velcro for the application of prefilterG3 prefilter on the front doors (supplied separately) front doors in 2 pieces with central velcro closure, with reinforcement rods with pressure latchinternal tensioners (belts with jack) Filtration unit for sandblasting dust purification complete with: front suction wall in perforated metalfiltration through series of pleated polyester cartridges; efficiency class "M" reverse flow pneumatic self-cleaning system during and after application dust recovery drawers on the lower part of the module control panel positioned outside compressed air quick coupling for sandblaster (not supplied) Nominal air flow 10,000 m3/h (for this example version) Available also with cover to protect the structure Exquipped with Lighting system with long-lasting neon (IP65) - white light, lamps positioned on each arch on the upper side Filtered air evacuation with expulsion hose
