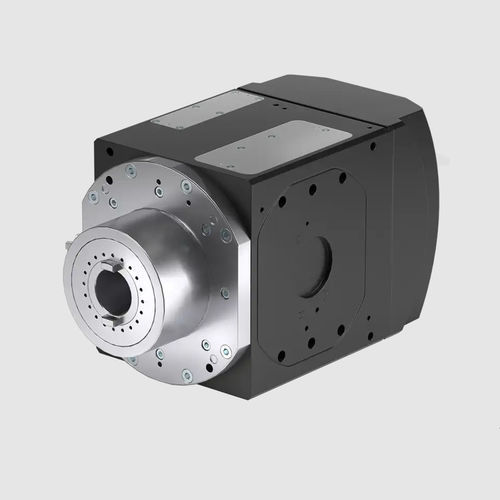

Heavy milling motor spindle ES793 - H6161H1060 machiningmotorizedliquid-cooled
Add to favorites
Compare this product
Characteristics
- Function
- heavy milling, machining
- Drive system
- motorized
- Lubrication/cooling
- liquid-cooled
- Other characteristics
- with automatic clamping system, with automatic tool changer, for robots, for granite, for marble, for glass working, for working graphite
- Rotational speed
12,000 rpm
(75,398.22 rad.min-1)
Description
TECHNICAL SPECIFICATIONS
Power S1/S6 15Kw/18Kw
Tool Blocking Automatic with pneumatic piston
ISO40
Encoder LB 1Vpp
Ratered Voltage 380V
Poles 6
Bearings Front Ceramic
Bearings Rear Steel
Bearings Long Life lubricated
Max Rpm 12.000
Spindle Body Alluminium Alloy
Cooling Liquid
Rotary Joint DPC (HSD patented)
Weight: 45kg
Catalogs
No catalogs are available for this product.
See all of HSD‘s catalogsOther HSD products
Stone/glass line - Automatic tool-change milling electrospindles
