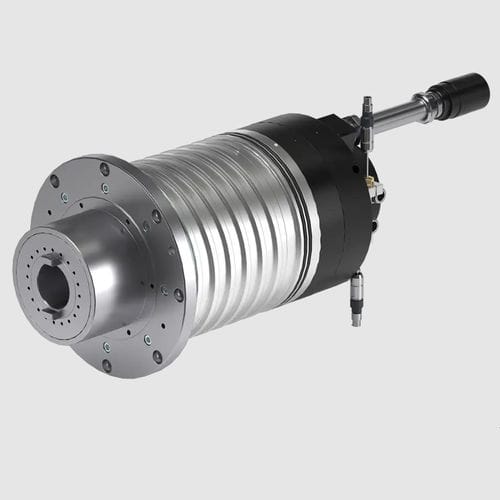

Machining motor spindle ES796 - H6161H0935motorizedliquid-cooledfor granite
Add to favorites
Compare this product
Characteristics
- Function
- machining
- Drive system
- motorized
- Lubrication/cooling
- liquid-cooled
- Other characteristics
- for granite, for marble, with automatic clamping system, for glass working, for working graphite, with automatic tool changer
- Rotational speed
12,000 rpm
(75,398.22 rad.min-1)
Description
TECHNICAL SPECIFICATIONS
Power S1/S6 15Kw/18Kw
Tool Blocking Automatic with pneumatic piston
Encoder LB TTL
Ratered Voltage 380V
Poles 6
Bearings Front Ceramic
Bearings Rear Steel
Bearings Long Life lubricated
Max Rpm 12.000
Spindle Body Alluminium Alloy
Weight 42kg
Cooling Liquid
Rotary Joint DPC (HSD patent)
Catalogs
No catalogs are available for this product.
See all of HSD‘s catalogsOther HSD products
Stone/glass line - Automatic tool-change milling electrospindles
