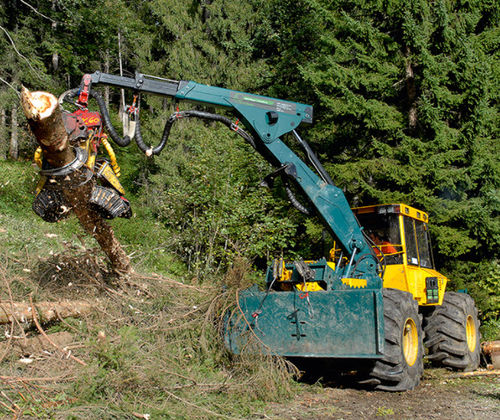

Forestry skidder HSM 904ZL

with grab

The HSM 904ZL is the most powerful thick trunk timber machine available on the crane forwarder market. Designed to tackle thick trunk timber with resilience and no compromise, it offers unimaginable opportunities with its extremely strong hydraulic motor pivot mechanism and crane from our own production. The HSM 904ZL is therefore suitable to attach large harvester units. It offers incredible stability thanks to the low mounting position of the crane and the long wheelbase. The winch is located behind the crane, which permits unimpaired winch operation on all HSM rear blade versions. The 904ZL offers the highest level of productivity with thick trunk timber and still enables forwarding with ground protection. Technical data model series 904 VOLVO PENTA TAD881VE EU Stage V Power: 185 kW (252 HP) at 1600 rpm max. revolution: 1150 Nm at 1100 - 1500 rpm max. torque: 1175 Nm at 1400 rpm Displacement: 7,7 liter Optional: VOLVO PENTA TAD882VE EU Stage V Power: 210 kW (286 HP) at 1700 rpm max. revolution: 1225 Nm at 1100 - 1600 rpm max. torque: 1255 Nm at 1400 rpm Displacement: 7,7 liter
