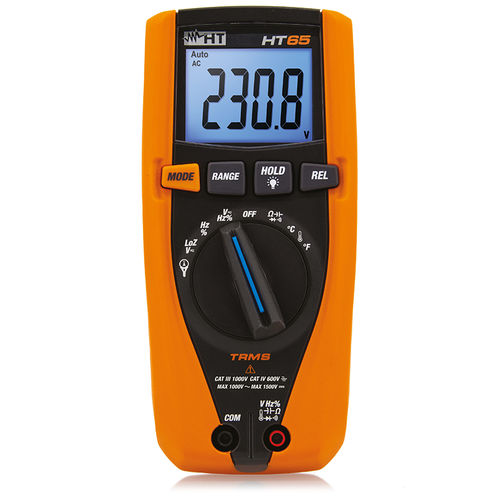

Digital multimeter HT6 series
portable1000 V1500 V

Digital multimeter - HT6 series - HT - portable / 1000 V / 1500 V
Digital multimeter - HT6 series - HT - portable / 1000 V / 1500 V
Digital multimeter - HT6 series - HT - portable / 1000 V / 1500 V - image - 2
Digital multimeter - HT6 series - HT - portable / 1000 V / 1500 V - image - 3
Digital multimeter - HT6 series - HT - portable / 1000 V / 1500 V - image - 4
Digital multimeter - HT6 series - HT - portable / 1000 V / 1500 V - image - 5
Add to favorites
Compare this product


Characteristics

Display
digital
Form
portable
Max voltage
1000 V, 1500 V
Max current
10 A
Safety rating
cat IV
Additional features
with thermometer, with data logger
Protection level
rugged
Applications
laboratory, for training, for electric vehicles, R&D, for HVAC
Other characteristics
AC/DC, true RMS, AC, DC, autorange, high-precision, high-resolution
Max DC voltage

Max.: 1,000 V

Min.: 0 V

Max AC voltage

Max.: 1,000 V

Min.: 0 V

Max DC current

Max.: 10 A

Min.: 0 A

Max AC current

Max.: 10 A

Min.: 0 A

Length

175 mm, 190 mm
(6.89 in, 7.48 in)

Width

85 mm, 94 mm
(3.35 in, 3.7 in)

Height

48 mm, 55 mm
(1.89 in, 2.17 in)

Weight

360 g, 460 g
(12.7 oz, 16.23 oz)

Description

The new series of HT professional multimeters is the result of an important research conducted at the most demanding users of this kind of equipment, namely laboratories where the choice of a measuring instrument is subject to strict tests concerning precision, reliability and safety of measurements even in extreme conditions. Therefore, a complete range multimeters, all able to measure in TRMS, all within CAT IV 600V, autorange function available on all models, with backlight display. The design is extremely modern and attractive, but also ergonomic, to ensure maximum ease of use. Display with high resolution, even in color version, for the premium model HT64. In the summary table you can find all the features that make this innovative set of professional instruments unique and valuable
