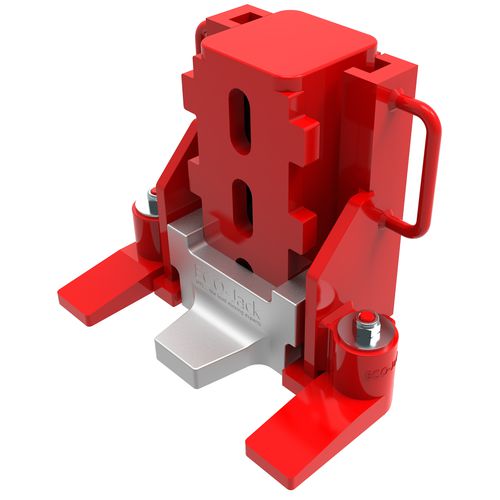

Hydraulic jack ECO-Jack XR-Serie EJ230-3XR 23tomobile23 tonsmachine
Add to favorites
Compare this product
Characteristics
- Type
- mobile
- Technology
- hydraulic
- Maximum load
- 23 tons
- Applications
- machine
- Other characteristics
- steel, for heavy loads
- Lifting height
155 mm
(6.1 in)- Height
330 mm
(13 in)
Description
Heavy-duty hydraulic jacks of the ECO-Jack® XR series do, compared with the ECO-Jack® S-series, require an external 700 bar pump for operation. This facilitates and accelerates working in confined conditions and when using several jacks at the time. The compact design without a pump leads to a weight reduction of up to 30% and allows for easy handling for optimal use under extreme conditions. External pumps allow simultaneous operation on several ECO-Jack® XR-Series machine jacks by one person. The ECO-Jack® XR-Series has an integrated spring return system, which always returns the machine lifter automatically to the starting position.
Catalogs
EJ230-3XR
1 Pages
Exhibitions
Meet this supplier at the following exhibition(s):
Other HTS Hydraulische Transportsysteme GmbH products
ECO-Jack XR-series Hydraulic claw jacks with integrated pull back up to 50to
