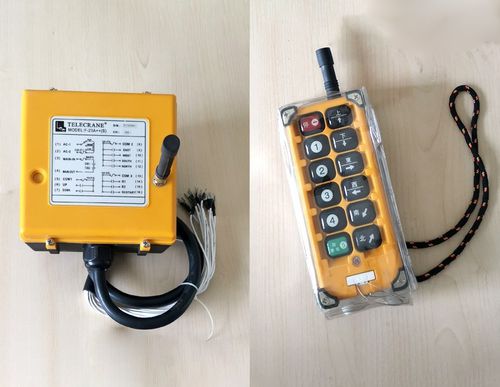

Crane remote control

radiowith buttons8-button

A, Pre-installation please check whether the transmitter’s S/N is in consistent with the receiver’s CH. B, The person without professional training shall not permit to disassemble the machine. C, The general power supply of crane should be closed to cut off the receiver power supply. D, The crane should have a general power relay, limit switch and other safety facilities. Structure: Glass-Fiber Enclosure protection class: IP 65 Temperature range: -40℃~ +85℃ Control distance: Up to 100 meters Receiver power: 110/ 220V/380V/VAC, or 12/24/36/48 VDC. Output contact capacity:5A sealed relay output (AC 250V/10A relays, 5A fuse contacts). 8 operation buttons, 7 single-speed buttons and one “STOP” 8 control contactors With battery voltage warning device, the power is cut off during low power Safety key switch to prevent from unauthorized user Set the internal functions by computer interface Up/down, east/west, north/south can be set as to mutual inhibition or not Spare key can be set to start, acceleration, toggle switch, general or other function
