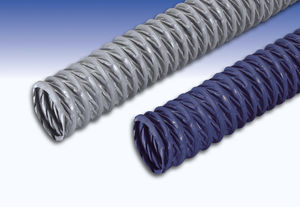

Chemical product hose J 1-6 PU H
for corrosive fluidspolyurethane-coated

Chemical product hose - J 1-6 PU H - HUANYU HOSE CO., LTD. - for corrosive fluids / polyurethane-coated
Chemical product hose - J 1-6 PU H - HUANYU HOSE CO., LTD. - for corrosive fluids / polyurethane-coated
Chemical product hose - J 1-6 PU H - HUANYU HOSE CO., LTD. - for corrosive fluids / polyurethane-coated - image - 2
Add to favorites
Compare this product


Characteristics

Use
for chemical products, for corrosive fluids
Other characteristics
polyurethane-coated
Inner diameter

Max.: 305 mm
(12.008 in)

Min.: 25 mm
(0.984 in)

Outer diameter

Max.: 313 mm
(12.323 in)

Min.: 32 mm
(1.26 in)

Pressure

Max.: 1.3 bar
(18.855 psi)

Min.: 0.01 bar
(0.145 psi)

Temperature

Max.: 90 °C
(194 °F)

Min.: -40 °C
(-40 °F)

Description

The J 1-6 PU H FLEX HOSE is integrated with resistance feature against chemicals, microbe, hydrolysis, UV and ozone. It is integrated with a wall that has a thickness rate of approximately 0.9 mm and a spring steel wire integrated in it. Through its abrasion proof and flame-retardant feature (compliant of UL-94 - V2), the flex hose is enabled to work with corrosive solids like powder, fiber, chips and dust. It can also be utilized for CNC machining area, arms extraction and dust collection machines. The hose is capable of serving under a temperature rate that ranges from 40 °C approx. up to +90 °C approx. It can be employed, might as well, for the conveyance of substantial granular corrosive particles.
