Pneumatic pressure comparator

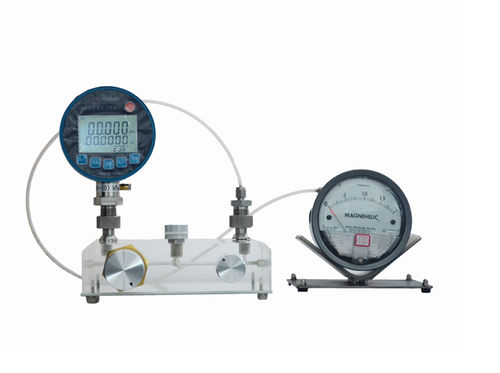

HS700 Micro Pressure Comparison Pump is made from high quality and transparent plexiglass material.The operation of piston inside can be seen clearly . The whole structure is more intuitive and compact.This instrument is specially designed to generate micro pressure from vacuum to 0.5bar. The F-adjust valve could accomplish 0.01mbar pressure resolution. HS700 is a very stable Mirco Pressure Calibrator. the design of relieve valve makes the system return to zero pressure quickly.two standard pressure outputs are easy to connect gauges under test without using the wrenches. the differential port also may connect gauges under test by hose. It widely calibrates micro pressure instruments in field and laboratory. Technical Specification ◆ Generated pressure range:(-0.5~0.5)bar ◆ Working media:Air ◆ Adjust resolution:0.01mbar ◆ Material: Body:transparent plexiglass Output part:stainless steel Seals:Buna-N ◆ Output interface connection: M20×1.5Female Differential port for connect gauges under test by hose ◆ Weight:2.55kg ◆ Dimensions:260L×180W×60H (mm) Functions HS700 provides pressure measurement for calibrating micro pressure instruments in field and laboratory . It can be extensively used in power, chemical, petrol, metallurgy, metering, military industry, etc. Characteristics ◆ Adopts high quality and transparent plexiglass material. ◆ The whole structure is more intuitive and compact. ◆ Simple operation, convenient maintenance. ◆ Pressure resolution:0.01mbar
