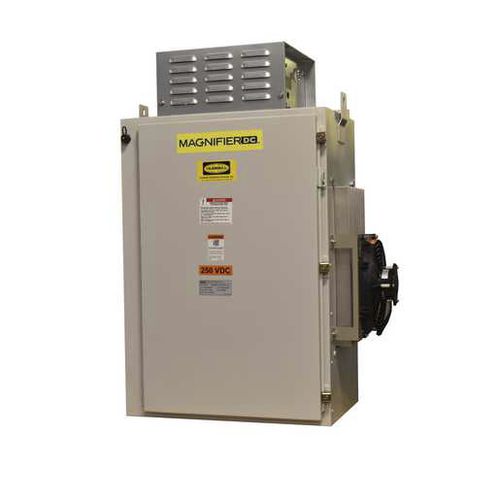

Control panel HC4275R2300

• Up to 4 sets of magnets, each magnet setup selectable via external contacts • Operable via LIFT/DROP Switch, Pushbuttons, Master Switch or Radio Control • Provides adjustable control of voltage and current for the full magnet operating cycle • Provides reduced energy consumption and cooler magnet operations via tailored holding current • Configurable Ethernet connection for customer read-only remote monitoring of all parameters, faults and operations • Provides Overcurrent (OC) setpoints and protection via alarms and trips • Instantaneous OC level operates digitally • Regen (Dump) system overvoltage protection operates digitally, with analog backup in case of CPU failure; Regen resistor continuously monitored for failure, regen circuit tested prior to every lift • Provides up to 6 differing control methods for Fanning / Dribble and single plate release (requires customer field adjustments and separately supplied operating pushbuttons or pilot devices) • Prevents, protects, alarms or monitors • Instantaneous and long-time overcurrent • Magnet (output) short circuit • System open circuit detection • Overhead Magnet (value per customer setpoint) • LIFT watchdog timer, adjustable Alarms only, based on time on in LIFT without a DROP operation • Heat sink overtemperature • 20 "Last Faults" recorded; without HMI attached* •
