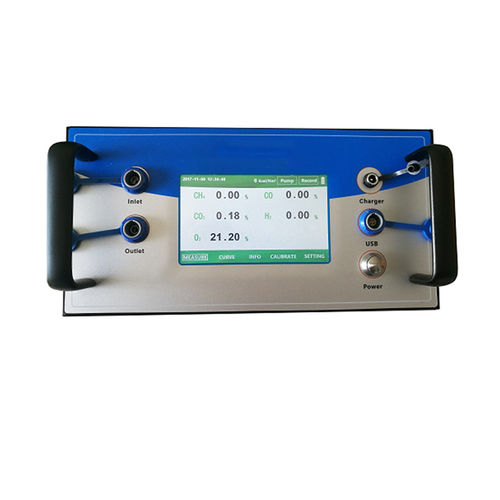

Biogas analyzer

watercarbonhydrogen sulfide

The equipment uses imported NDIR non-spectroscopy infrared and ECD electrochemical technology, which is mainly used to measure the volume concentration of CH4, CO2, H2S, O2, H2, CO in biogas. The product has high measurement accuracy, simple structure, convenient operation and good practicability. Mainly used in the fields of landfill, anaerobic fermentation production process, sewage treatment and CDM metering. Characteristics 1. One instrument simultaneously measures the volume concentration of CH4, CO2, H2S, O2, H2, CO in biogas 2. The instrument adopts 5 inch TFT LCD touch screen for human-computer interaction, digital/curve display real-time concentration, simple operation and use 3. Aluminum alloy material, compact and easy to carry (270X136X136mm) 4. Save historical data, adjustable time interval, USB interface export data table 5. Soft start power switch, intelligent management of battery power, to avoid the instrument working under low power conditions 6. Calibration menu and alarm value setting are controlled by password to prevent misoperation 7. One-key recovery of "factory settings", eliminating the need to return to the factory for repair after misuse Technical Parameters Main Accessories 1)Inlet: collect sampling gas from the process pipe by Ø6 hosepipe through inlet. 2)Water bubbler: sampling gas is delivered into water and removed dust and tar by washing. The water is not allowed to over the highest water line. 3)Activated Carbon filter: to adsorb residual tar 4)Clamper: to fasten water scrubber and activated carbon filter 5)Gas filter: removing the impurities and separate water vapor, filtering accuracy is 1um;
