regional radiation monitoring in nuclear power plants, medical radioactive devices, industrial flaw detection, radioisotope applications
Detailed
Introduction

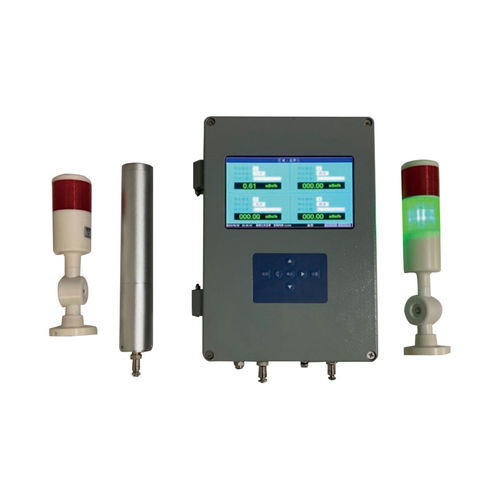

FYJL-Q2 Regional Gamma Monitor is an instrument that can monitor the regional gamma dose rate level in real time and has an alarm function. The separate detector can be fixed in the sensitive area for long-term monitoring and multi-point simultaneous monitoring. Dose rate and alarm value at the point. It is suitable for regional radiation monitoring in places such as monitoring medical radioactive devices, industrial flaw detection, radioisotope applications, well logging, etc.
Features
1. Separate detector, flexible use
2. One host can manage multiple detectors at the same time to achieve multi-point monitoring, with strong scalability
3. Can realize long-distance communication, stable and reliable
4. It can be controlled in association with devices such as screen doors to enhance security
5. When the threshold is exceeded, the detector and the host can simultaneously sound and light alarm
6. Easy to use
Technical Parameters
● Detector: GM counter tube detector (optional Nal(TI) detector)
● Measuring range: Dose (0.01μSv/h - 1Sv/h), Energy (50keV-3MeV)
● Display unit: μSv/h, mS/h
● Reference energy: 661.6keV (137Cs)
● Overload: greater than 10 times the upper limit of measurement
● Alarm threshold: continuously adjustable within the measurement range
● Coefficient of variation: <10%
● Stability: <10% (500 hours)
● Power supply mode: AC 220V
● Dimensions: Host (410x230x133mm), Detector (φ7Ox285mm)
● Weight: Host 3kg, Probe 0.8kg
