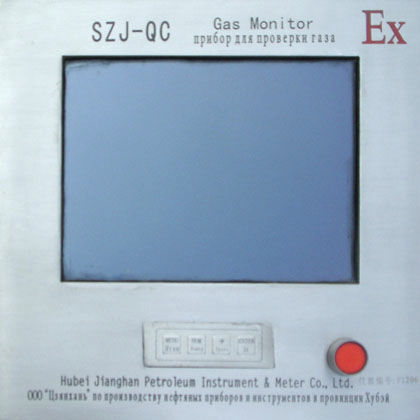

LCD monitor SQC

processfor gas stationswaterproof

SQC Gas Monitor Application Areas SQC Gas Monitor is used to measure and display variations of total gas, H2S contents during drilling process and help drillers to master working conditions at well site. Features 1. Waterproof, shock resistance, explosion proof and anti-corrosion. 2. Highly integrated micro-controller is applied for data acquisition and process so that high reliability is guaranteed. 3. Parameters can be directly acquired and processed; relevant alarm threshold values can be setup as needed for audible and visual alarm. 4. Humanization design of display interface permits drillers to switch freely into habitual language, select displayed parameters, calibrate parameters, set up alarm parameters and other interfaces. 5. Big screen and high-brightness monitor and human-computer interaction operation makes a great visual effect. Main Technical Specifications 1. Working Environment Working temperature：-45-~+60℃ Working humidity：10%-95%RH Power supply: 176VAC~264VAC, 47Hz~63Hz 2. Functions (1) Flammable Gas Detector (Sensor) Measuring range: 0~100%LEL Accuracy: ±3%LEL Power supply: 10VDC~28VDC, three phase system (2) H2S Gas Detector (Sensor) Measuring range: 0~100ppm (optional range) Accuracy: ±2ppm Power supply: 10VDC~28VDC, two phase system
