Absolute pressure gauge KPG32for welldownhole
Add to favorites
Compare this product
Characteristics
- Pressure type
- absolute
- Applications
- for well
- Other characteristics
- downhole
- Pressure
1,387 bar
(20,116.73 psi)- Process temperature
150 °C
(302 °F)
Description

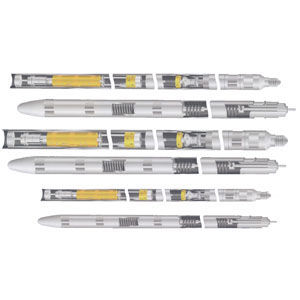

Model KPG32 Downhole Pressure Gauge
Uses
Model KPG32 is designed to measure downhole pressure in various oil wells and water wells.
Features
It is characterized by high accuracy, reliable performance, a complete line of pressure gauges and clocks, simple operation and easy maintenance. Its consumables and accessories are interchangeable with other PG Type pressure gauges.
Specifications
Uncertainty: ±0.2%F·S
Maximum working pressure: 138.7MPa
Maximum working temperature: 150°C
Its clock series (hour): 2,3,4,6,12,24,48,72,96,120,144,168,180,360
Measuring ranges of gauges (MPa): 0--10 0--15 0--138.7
Dimensions: ø32×1880
Weight: 7Kg
