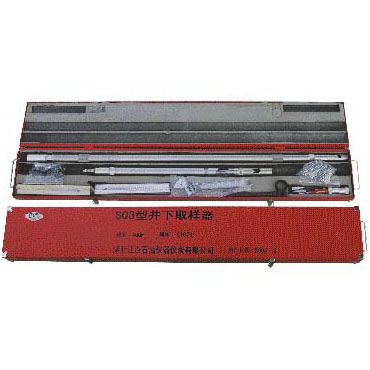

Liquid sampler SQ3

for the petroleum industrydownhole

SQ3 Downhole Sampler Application Areas SQ3 Downhole Sampler is used to take liquid sample with pressure from specific formation (at specific depth) in oil wells, oil and gas wells, and water wells. It shows more its superior quality when it is employed to sample in deep wells, dense oil wells and open hole wells. Features 1. Downhole operation on a slick line. 2. Controlled by clock. 3. It samples under pressure. 4. It has three sampling chambers of different capacities, namely, 400ml, 600ml and 800ml. Technical Specifications 1. Maximum working pressure: 70Mpa 2. Maximum working temperature: 150℃ 3. Control mode: clock-controlled 4. Clock model: SJ6Ⅱ, 12 hours or 48hours 5. Sampling volume: 400ml, 600ml and 800ml 6. Dimensions and weight:(refer to the above tabce)
