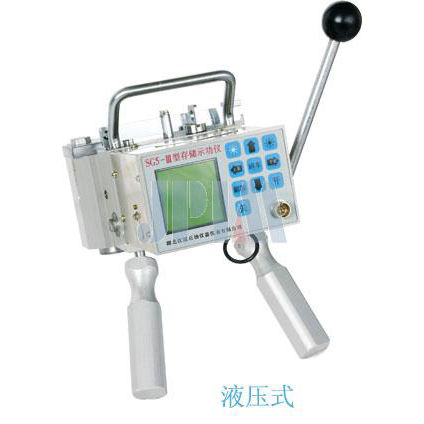

Hydraulic dynamometer SG5-Ⅲ

with graphic display

SG5-Ⅲ Memory Dynamometer Application Areas SG5-III Memory Dynamometer is mainly used to measure displacement-load diagram, displacement-current diagram of pumping wells, and real time display diagrams at well site. Features 1. With integrated and modularized structure, it can complete data acquisition and data display. 2. Data base can be searched by well name. 3. It can drive laser LQ-300K printer directly. 4. It can communicate with computers. 5. SDX series dynamometer calibrator,can be used to calibrated it automatically. Technical Specification 1. Load: 0～140kN;Accuracy: ±1%F.S (pressure plate, shutdown type) 0～80kN;Accuracy: ±3%F.S (hydraulic type, non-shutdown) 0～140kN;Accuracy: ±3%F.S (hydraulic, non-shutdown) 2. Displacement: 0-8m Accuracy:±1%F.S 3. Current: 0～150A Accuracy:±3%F.S 4. Strokes per minute: 1～30 5. Memory capacity: 100 load cards and 100 current cards 6. Storage capacity of well-name database: 240 wells 7. Continuous working hours: 6～8 h 8. Working temperature:-20~55℃ 9. Dimensions and weight:250×150×200mm 6kg
