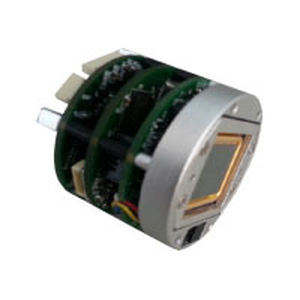

FPA image sensor JIR-10XX

infrareduncooled

JIR-10XX Thermal Imaging Core Module Application To be incorporated into various types of uncooled thermal imagers Functional characteristics 1.Small size, light weight and high reliability 2.Auto/Manual NUC 3.Auto/Manual brightness/contrast adjustment 4.Electronic zooming 5.Black/white reverse display 6.Standard composite video signal (PAL) Technical data 1.Detector type: 384×288 2.Spectral range: 8～12μm 3.Thermal sensitivity (NETD): < 80mk @25℃ 4.Operation temperature: -30℃～ +60℃ 5.Storage temperature: -40℃～ +70℃ 6.Dimension (mm): ≤ 55×55×60 7.Weight: ≤ 100g
