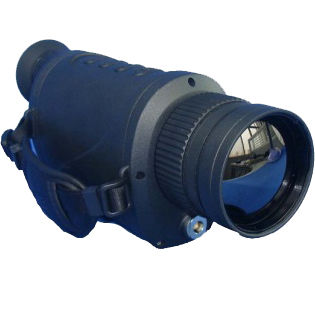

Thermal imager JIR-1123A

surveillancefor night visioninfrared

JIR-1123A Hand-held Thermal Imager Applications Night vision observation, rescue & search, patrol and surveillance Functional characteristics 1.High mobility: small size, light weight, hand-held portability. 2.Multiple functions and controls: image display/record/download; image preview/delete; auto/manual NUC; auto/manual gain control; brightness control; positive/negative image display; electronic zooming 3.High environment adaptability and reliability Technical data  Detectors: 320×240 uncooled FPA  Spectral range: 8～12μm  Lens: 65mm/F0.8 (customized)  NETD：≤40mK ＠25℃  Detection distance: ≥1.2 km against individual persons; ≥ 2.4 km against vehicles; ≥ 5 km against medium sized ships  Focusing mode: manual  Video output: CCIR/LVDS  Storage capacity: 1000 IR images (extendable)  Operation temperature: -30℃～+60℃  Vibration resistance: as per GJB150  Packaging: IP54  Weight: ≤1.5 kg (with battery)  Dimension（mm）: 230×112×95  Power supply: built-in battery ( continuous operation time >4h), or external 6～9VDC power source  Electric interface: USB2.0 port for image download  Mechanical interface: Standard tripod thread interface
