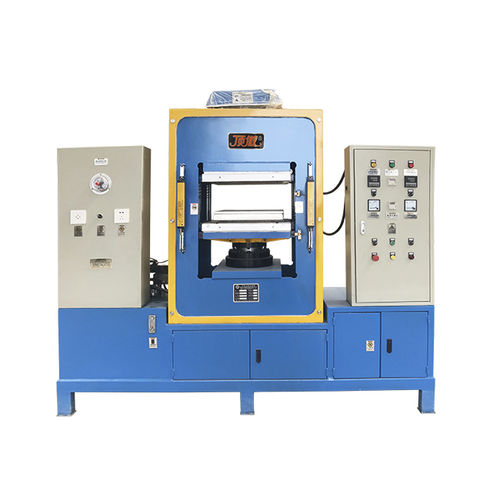

Leather embossing unit DA-2020

Leather Embossing Machine B (Type: DA-2020) Machine parameters Power: 18KW Dimensions: 2200 * 700 * 1900mm Maximum stroke of movable beam: 250mm Working speed: piece/10s Backing velocity: 50 mm/s Nominal pressure: 630KN Maximum working pressure of liquid: 25MPa Voltage: 380V Weight: 1600KG Machine introduction ●Machine characteristics 1, Precise four-column guide design ensured high precision of products. 2, Use large-diameter hydraulic cylinders, high presser and stable operation. 3, Use resisting high temperature motors, ensuring safe and long-term service. 4, Made by high-precision and high-strength thick steel,deformation and rigidity. 5, Optimization design, simple, economic and applicable. Direction valve integrated system hydraulic control system, reliable, long life, small hydraulic impact, reduce the link pip and leak. Independent electrical control system, reliable, operating convenience, centralized control buttons, support manual and automatic function. 6, Up and down heating form, adjustable temperature,make product texture more clearly. 7, High sensitivity grating sensors ensure safety operation. 8, The upper and lower positions of active guide pillar, head and platen are set electromagnetic induction device, accuracy positioning , precision products texture has good consistency. 9, Pressure-keeping and time-delaying character. Adjustable working pressing and travel. 10, Can produce various different patterns of products with changing different molds .
