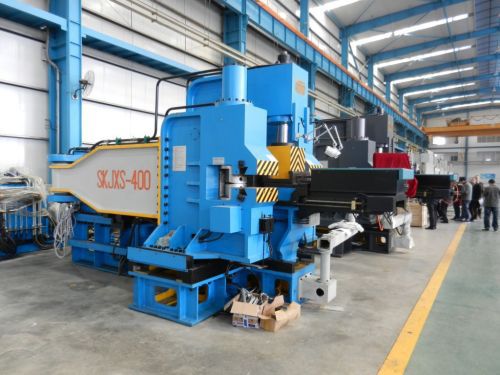

Hydraulic bending machine SKJXS series

motorizedmanualfor flat profiles

1. SKJXS CNC Bending Machine adopts screen-touch of international standard. Due to its beautiful interfaces and various functions, the excellent interaction between the operators and the machine can be realized, making the whole operation very convenient. What’ more, the numerical control system of CNC Bending Machine embodies the functions of graphic display and tracking, which can dynamically display and track the entire process and processing time for each rib. 2. The powerful system with timely full-closed loop control can promote the overall operation of the frame bending machine. It can detect the data generated from TRIBON, CADDS5 and HDSHM, and then correspondingly turn the data into rib processing instructions and test the processed rib data based on it. All these can greatly meet the demands of the shipyards who are pursuing the digital shipbuilding. 3. Both automatic and manual controls are provided. On one hand, CNC Bending Machine can accurately feed, discharge, bend, anti-deform and automatically compensate the springback and elongation. On the other hand, convenient manual operation is optionally offered. 4. This machine can automatically and manually bend forwards or backwards, and S-shape of bulbs, unequal angel plates, and T sections or provides plates’ straightening without changing the molds. And during the whole process, no obvious defects like buckling, bending and reverse edge are caused. 5. Equipped with vertical hydraulic pre-bending device and functions of manual settings against deformation, CNC Bending Machine can automatically avoid lateral bending and provide compact rids.
