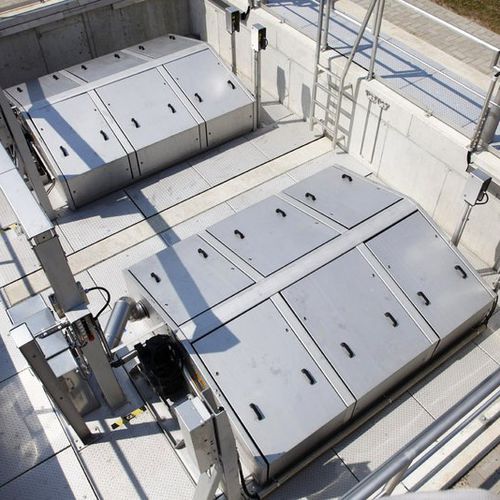

Rotary screen RoDisc®

fine

Micro screen with rotary mesh for reliable removal of fine suspended solids Large screen surface on a small footprint Very high filtrate quality Gravity system Maximum separation efficiency due to the definied separation provided by the square mesh Removal of activated sludge flocks after secondary clarification tanks Treatment of circulation water and service water Preliminary filtration in drinking water recovery Advanced phosphate reduction through preceding precipitation and flocculation The HUBER Disc Filter RoDisc® has been designed for fine screening of up to 1,500 m³/h with a mesh size down as small as 10 μm. The screen is especially suited for applications where a very high filtrate quality and large filter surface area is required. Screening with a defined separation size provided by a square mesh Gravity system (no lifting of wastewater required) Low headloss, gravity filtration High hydraulic throughput capacity No external wash water supply required Effluent standards are reliably met. Reduced wastewater discharge charges Reduction of filterable solids, COD, BOD, phosphorus For installation within a stainless steel tank or in customer's concrete tank Compact, enclosed design Continuous operation principle
