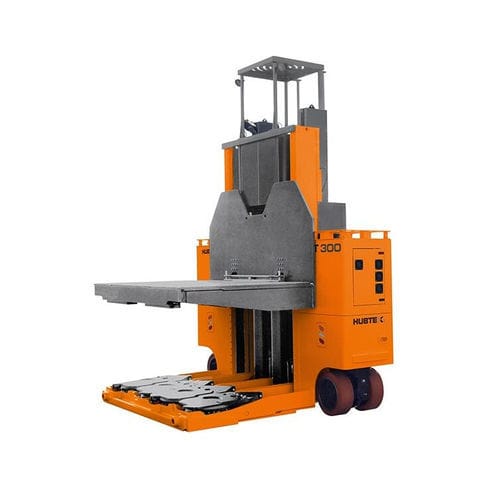

Automatic tool changer WWT series

HUBTEX tool changers with load capacities of up to 65 tons help to reduce the changing times for pressing and stamping tools and so improve production efficiency. A HUBTEX tool changer is used in particular when changing tools with single presses which, due to their dimensions and mass, do not have a sliding tool platform. The compact chassis also allows for extremely low entry heights below the tools. Thanks to its innovative chassis, every HUBTEX tool changer can carry very high load capacities with very low platform heights. This is achieved by installing several rows of smaller wheels, which are individually designed and calculated depending on the additional load. The tool changers from HUBTEX are characterized by their compact dimensions, as the entry situation for pressing and stamping tools or other machines is usually very confined. This is made possible by the individual frame structure of the vehicle. Precise docking at the center of the press is a prerequisite for fast and reliable tool changes. This avoids the need to reposition the tool on the lifting table. The exchange vehicle approaches the press with the tool platform raised. When the tool platform is lowered, the docking hook moves into the holder on the press bed. The precise positioning can be covered by a variety of assistance systems. Simple systems such as a line laser at the control station for precise positioning of the transporter in front of the press bed in combination with a lift height indicator and distance display of the tool platform are just as conceivable as a fully automated positioning system.
