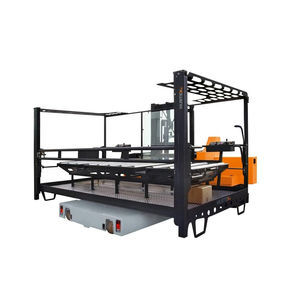

Electric side loader VK
ride-onmulti-directionalplatform

electric side loader
electric side loader
electric side loader
Add to favorites
Compare this product


Characteristics

Motor type
electric
Operator
ride-on
Other characteristics
multi-directional, platform
Carrying capacity

Min.: 3 t
(3.3 us ton)

Max.: 10 t
(11 us ton)

Lifting height

7,500 mm
(295.28 in)

Description

>> Order picking with vacuum suction device >> Fittings for detachable platform, alternative as integrated solution >> Order picking unit can be individually adapted to meet requirements >> Conventional electric multidirectional sideloader for stacking of complete packs The VK model can be used as a conventional electric multidirectional sideloader for stacking complete packs and for order picking individual customer orders with a vacuum suction device. The HUBTEX VK enables individual sheets to be vacuum lifted from the rack compartment and placed on the fork arms of the lift truck until picking of the order is completed. The completed customer order pick can then be loaded directly with the lift truck. As an integrated version, the VK model has a telescopic suction device which is permanently installed on the vehicle and can be folded down for order picking. Alternatively, the truck can be equipped with a detachable suction device. This detachable version can also be picked up by various HUBTEX vehicles with pick-up preparation.
