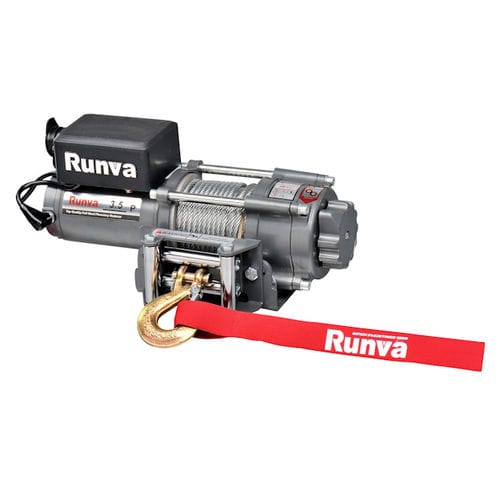

Electric winch ATV-UTV EP series

vehicle recoverypullingplanetary gear

Electric winches for vehicle such as quad and other ATV-UTV. Capacity 1588 kg. Model with wire rope. Use: • - Pulling only. For any maneuver on an inclined plane, the effort to be developed must be increased. • - Small 4x4 • - Quads. • - ATV/UTV... • - 1 stage steel planetary reducer. • - Patented manual cam declutch. • - Automatic brake. • - 12 V motor. • - 2.6 m pendant control. • - Model with wire rope. Model with textile rope exists. • - Nylon safety strap for safer handling of the wire rope and hook. • - Roller fairlead. • - Supplied with fixation plate, rope (wire rope or textile rope depending on models) and hook. Technical characteristics 12 V Electric winches for ATV-UTV EP3500, capacity 1588 kg, wire rope Capacity 1st layer kg - 1588 Motor kW - 2.4 Rope length supplied with the winch m - 12.8 Rope Ø supplied with the winch mm - 5.4 Speed on 1st layer at nominal load m/min - 1.4 Speed on 1st layer without load m/min - 3.2 Amps 1st layer at nominal load - 200 Amps 1st layer without load - 20 Weight kg - 10
