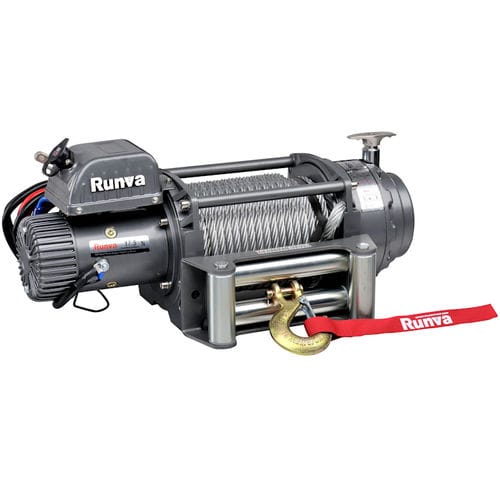

Electric winch EN17500

haulagevehicle recoverypulling

12 V electric winches for trucks, big 4x4, utilities. Capacity: 7938 kg. Model with wire rope. Use: • - . Only for pulling/hauling operations. For any maneuver on an inclined plane, the effort to be developed must be increased. • - Trucks. • - Big 4x4. • - Vehicle recovery. • - Utilities... • - Manual desengaging handle. • - Automatic conical brake. • - Patented 3 stage planetary reducer. • - Roller fairlead. • - 3.9 m long high resistance rubber pendant control. • - 12 V motor. Model with 24 V motor exists. • - Nylon safety strap for safer handling of the wire rope and hook. • - Supplied with wire rope and hook. Technical characteristics 12 V electric winches for trucks EN17500, capacity 7938 kg Capacity 1st layer kg - 7938 Motor kW - 5.4 Rope length supplied with the winch m - 26.5 Rope Ø supplied with the winch mm - 12 Speed on 1st layer at nominal load m/min - 0.9 Speed on 1st layer without load m/min - 6 Amps 1st layer at nominal load - 450 Amps 1st layer without load - 100 Weight kg - 67
