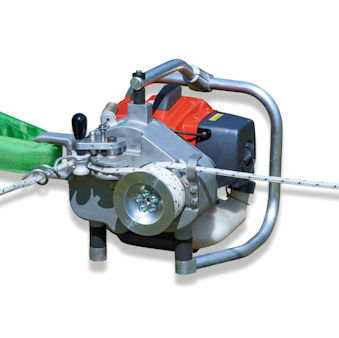

Traction capstan winch FORESTBOX
compact

traction capstan winch
traction capstan winch
Add to favorites
Compare this product


Characteristics

Application
traction
Other characteristics
compact
Capacity

Min.: 400 kg
(881.8 lb)

Max.: 1,800 kg
(3,968.3 lb)

Speed

Min.: 12,000 mm/min
(7.9 in/s)

Max.: 40,000 mm/min
(26.2 in/s)

Description

A range of forest winches from 400 to 1800 kg. Use: Traction/Pulling/Hauling operations only. Forestry profesionals (to pull wood in places that cannot be accessed by heavy machineries. Fire departments. Rescue operations. Construction sector (to pull construction materials, cables or pipes...)... Aluminium frame and housing with fixation ring. Easy to use. Compact and light. 1 or 2 speed model. 2 stroke ACTIVE motor or 4 stroke HONDA air-cooled motor depending on model. Illimited rope length. Safety usable from a distance by pulling on the rope. Centrifugal clutch: the capstan-winch continue to operate on idle which prevents unintentional rotation. Locking cleat break preventing any backward movement of the load. Many accessories available in option: textile rope with thimble and hook (m/l or kit 50/100 m), sheave for doubling capacity, sling, shackle, soft shackle, diverting pulley, chocker chain, transport bag.
