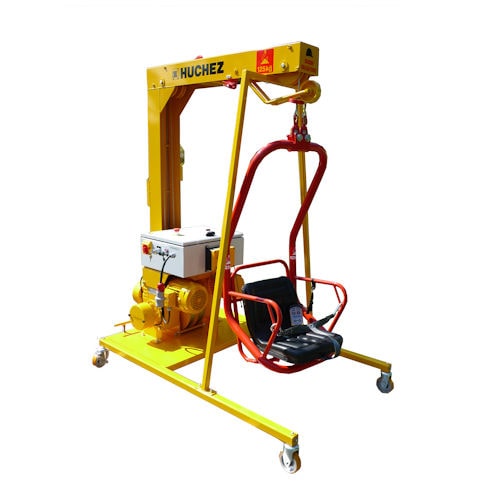

Electric winch Securitreuil

man-ridingwith wireless remote control

Use: • - Personnel lifting • - Visits, inspection, access to silos, treatment plant pits, bridge piers, underground networks, sewers... • - High resistance, non-rotating galvanized steel ropes. • - Beaking load: 1600 kg on each. Safety factor equal to 10. • - Two independent winches: one winch ensures the lifting function and the other the fall arrest function. Both winches are synchronized. • - Three-phase 230 V or 400 V - 50 Hz, P = 0.75 kW. • - Working height 25 m. Other model available in 50 or 70 m. Other dimensions: consult us. • - Wheels with locking system ease the movement and to hold it in working position. • - Trouble-shooting crank handle. • - Load limiter included. • - Lower limit switch. Upper limit switch and final limit switch. • - No current break. In the event of power failure, the winch stops automatically with the brakes applied. • - Low voltage electric control: two 48 volt control boxes provided for. One is mounted on the frame of Securitreuil and the other on the operator's seat. • - Operator pendant control with spooler (SCT25E CE). Other models: radiocontrolled. • - Rope included. Technical characteristics Securitreuil 125 kg, working height 25 m Capacity kg - 125 Working height m - 25 Speed m/min - 9 Motor kW - 0.75 Power - 3 Ph - 230/400 V Weight kg - 330
