Wall formwork ES 24

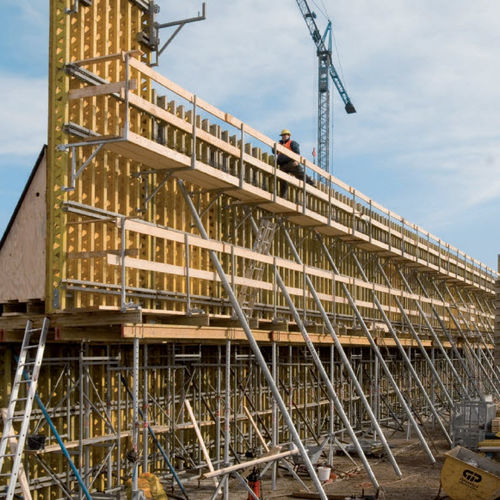

ES 24 - PRE-ASSEMBLED FORMWORK ELEMENTS ES 24 is the highly adaptable yet robust timber beam formwork for walls, composed of pre-assembled R 24 elements. These pre-assembled elements are available in four widths and three heights and can be almost endlessly and steplessly combined in order to attain any desired wall dimensions. The plywood can either be pre-fitted ready for use or can be freely selected to match the favored concrete surface. PRODUCT ADVANTAGES Optimal adaptability to ground plan possible thanks to the object-related arrangement of the girders and tie rows Maximum concrete pressure up to 60 kN/m² (according to DIN 18218) Fast and easy connection of stacked elements using the MANTO aligning panel clamp Desired element heights can be easily attained according to the architectural concrete requirements Easy assembly and disassembly of formwork units enable trouble-free retrofitting during frequent changes in the ground plan
