Wall formwork MANTO

wall formwork
wall formwork
wall formwork
wall formwork
wall formwork
wall formwork
Add to favorites
Compare this product


Characteristics

Application
wall
Pressure

Max.: 80 kN/m²
(11.6 psi)

Min.: 0 kN/m²
(0 psi)

Description

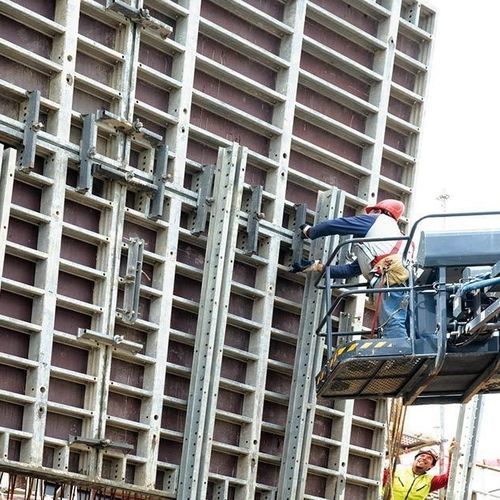

MANTO | Wall formwork for grand designs When large wall surfaces have to be shuttered, MANTO® is the No. 1 choice. Quality, functionality and flexibility are the decisive factors, making it one of the most popular formwork systems in industrial and house construction projects. Rugged & adaptable Its 14 cm frame thickness, interior stiffening ribs and hot-dip galvanizing give MANTO its extra robustness, enabling it to withstand a concrete pressure of 80 kN/m² even in its height-extended state. With the MANTO aligning clamp, two panels can be joined together tightly and completely flush in a single action – no additional bolt connectors or bracing required. In just a single crane lift, up to 40 m² of formwork surface can be shifted without further stiffening. Complete choice of panels Any combination of standard MANTO formwork panels are available up to 3.3 m and the XXL variant is also available in sizes up to 4.8 m. MANTO is ideally suited to cover large, medium and small ground plans equally well. The oversized XXL panels are ideal for the shuttering of large surfaces and permit sizable cuts in labour costs. The connections are not tied to any fixed grid pattern, which ensures maximum flexibility on site.
