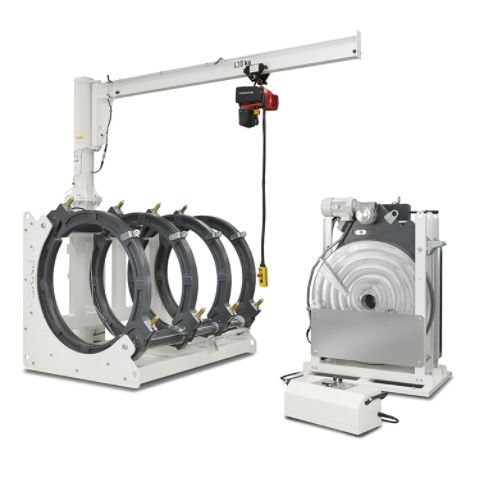

Butt welding machine WHITELINE

manualfor pipehydraulic

The Manual Hydraulic Series of butt-welding machines in the WhiteLine generation makes a statement by its superior manufacturing quality and its scalability in the form of an easy upgrade to a data logging-enabled machine with the installation of an SPG 2.0 data logger for welding report logging. The machine ships with a hydraulic unit that features, as a unique characteristic, a totally integrated enclosure that also is a splash and dirt shield for all components on the inside. The front panel controls, too, are included in the ingress protection according to the IP 54 rating (where IP 64 is possible upon request). All connections, including an additional power socket free to use for the operator’s convenience, are located at the back of the controller. Both the facing tool and the heating element are also connected at the back panel of the hydraulic controller. Therefore, no additional power distribution unit is needed. Heating element temperature 7-segment numerical characters, character height 10 mm Only one supply needed, all connections and an additional power socket on the back of the enclosure Digital heating element temperature control, settable from the hydraulic unit Hydraulic unit in encased, rugged steel enclosure with a weight of as little as 19.5 kg (up to O.D. 355 mm) Max. pressure up to O.D. 355 mm, 130 bar; O.D. 500 - 630 mm, 150 bar; O.D. 800 - 1600 mm, 220 bar Welding pressures displayed on precise, maintenance-free manometer gauge
