Band saw BSM 450panelverticalfor plastics
Add to favorites
Compare this product
Characteristics
- Technology
- band, panel
- Orientation
- vertical
- Treated material
- for plastics
- Applications
- for pipe
- Operational mode
- semi-automatic
- Other characteristics
- frame
- Circular saw blade diameter
Min.: 50 mm
(2 in)Max.: 450 mm
(18 in)
Description

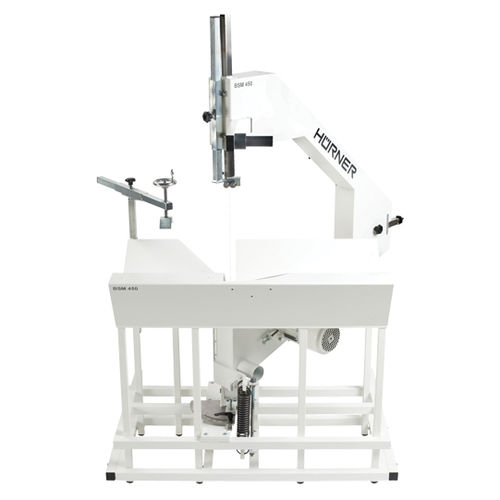

This band saw for cutting plastic pipes offers a working range from O.D. 50 - 450 mm.
The machine has a steel pipework frame with a diamond-shaped pipe bed. A variably adjustable clamping system allows the manual securing of the pipe in the diamond bed. An angle gauge located on the side where the user stands enables any cutting angle from 0 deg. through 45 deg. An optional support panel can be mounted onto the diamond-shaped bed to enable you to cut Tees and crosspieces professionally.
1800 x 1400 x 1200 mm
190 kg
400 V, 50 Hz (3 ph. PE, N)
1250 W
12 months
WEEE Reg. No. DE 74849106, ISO 9001:2015
