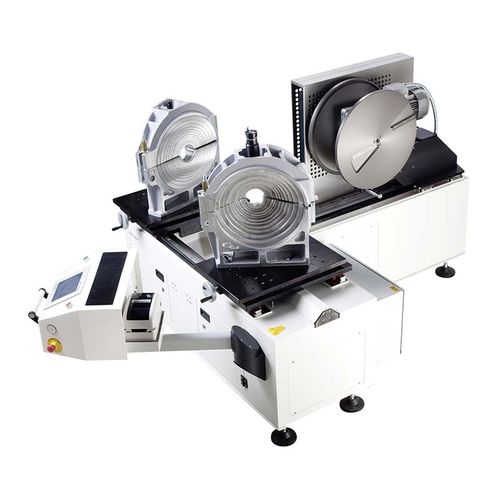

Plastic welding machine HWT 400 LINE

HÜRNER's HWT 400 Line is the end-to-end transformation of worksite technology into workshop systems. As a consequence, the HÜRNER HWT 400 mm workshop line, too, has systems of the versions CNC (HWT 400-C), WeldControl (HWT 400 WeldControl), and Manual Hydraulic (HWT 400 M). All systems have been developed in compliance with the so-called machinery directive 2006/42/EC as amended and allow making segments, tees, Y pieces and crosspieces in workable dimensions from O.D. 90 through 400 mm. The welding systems are set on a welded or a screwed-fast, heavy-duty, no-warp support frame and the bearings on which move both the horizontally traveling carriages and the heating element and facing tool assembly, are designed as precision-engineered and heavy load-bearing trapeze-shaped guides with precision-matched runner blocks. For the product versions CNC and WeldControl, it goes without saying that all parameters that are critical for a high-quality and reproducible welded joint are monitored throughout the process and saved to the memory of the system, which can hold up to 10,000 reports. Furthermore, all CNC and WeldControl systems are equipped with a USB interface to enable downloading the welding reports in the PDF format to a USB stick or sending them to the management database in the HÜRNER DataWork Professional format. It is also possible to label a joint immediately for its quality by printing on plastic foil an indelible label tag with the available tag printer that will identify the fitting.
