Single-phase motor MY
asynchronousIP55IP54

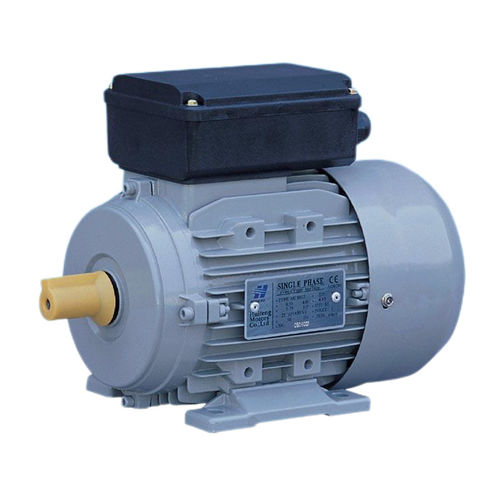

Single-phase motor - MY - Huifeng Motors - asynchronous / IP55 / IP54
Single-phase motor - MY - Huifeng Motors - asynchronous / IP55 / IP54
Single-phase motor - MY - Huifeng Motors - asynchronous / IP55 / IP54 - image - 2
Single-phase motor - MY - Huifeng Motors - asynchronous / IP55 / IP54 - image - 3
Add to favorites
Compare this product


Characteristics

AC/DC
single-phase
Type
asynchronous
Protection class
IP55, IP54
Configuration
hollow-shaft, aluminum, squirrel cage, squirrel-cage rotor, with brake, cast iron frame, two-winding, with cast iron flange, removable legs, with run and start capacitors, with start capacitor, with permanent capacitor, vertical, aluminum frame, with 2 capacitors, with start capacitor and relay, TENV, with 1 capacitor, TEFC
Efficiency classes
IE2, IE1
Number of poles
4-pole, 2-pole, 6-pole
Cooling mechanism
air-cooled, air-cooled, IC411
Applications
packaging machine, for pump, for conveyors, blower, food, conveyor, oil pump, for frequent stop/start applications, for winding operations, for the food industry, for wind turbine, for centrifugal pumps, cooling tower, for machine tools, for the pharmaceutical industry, for vertical loading, for vacuum cleaners, for roller shutters, wind turbine yaw, for water pumps, for air compressors, heavy-duty, for compressors, for fans, for household appliances, for vacuum pumps, for water treatment applications, agricultural, for wood-processing machines, for drills, for hydraulic powerpacks, for measurement instruments, for agribusiness, for cutting machine, for grinding machines
Other characteristics
low-voltage, custom, double-flange, energy-saving, high-efficiency, high-torque, standard, low-noise, high-power, low-vibration, precision, two speed, variable-speed, constant speed, multi-position, increased power
Power

Max.: 4 kW
(5.438 hp)

Min.: 0.06 kW
(0.082 hp)

Rotational speed

1,000 rpm, 1,500 rpm, 3,000 rpm
(6,283.19 rad.min-1, 9,424.78 rad.min-1, 18,849.56 rad.min-1)

Description

Huifeng’s single phase motors are general purpose motors and designed according to IEC 60034. Designed for “general purpose” use means that these motors can be used in many applications. The motors can be customized according to your requirement •Junction box is 90° rotatable and with two cable entries •Feet can be installed on the left side, the right side and the bottom •Aluminum casing and ABS junction box •Material of end shield: aluminum (frame size 56-90), cast iron (frame size 63-112) •Multi-mount and removable feet •B14R, B5R flange and customized shaft end: which ensures our motors much more flexible for different size applications •Brakes & Encoders & Thermal Protectors are in Option •100% copper wires supplied by the top chinese manufacturers •Windings is Vacuum Pressure Impregnated (VPI) that can eliminate corona and promote insulation longevity •Rotor is coated with anti-oxidant painting •Each rotor is well balanced with low vibration •We use NSK, SKF, C&U bearing •Each bearing is 100% inspected by a professional equipment •Every component must pass incoming inspection before entering our warehouse •Various of packing types to satisfy customers’ requirement
