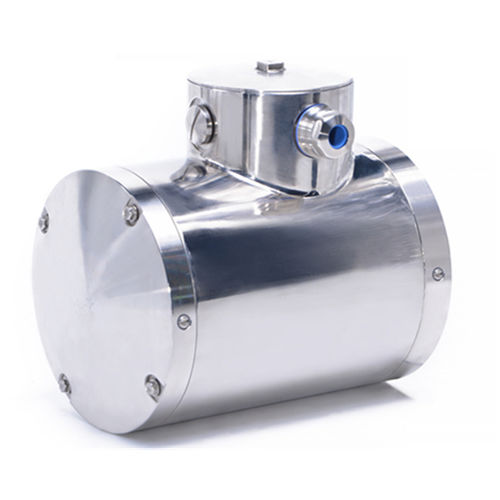

Stainless steel motor HYW TENVW

three-phaseasynchronous400 V

Stainless steel Motors for food processing, pharmaceutical and other applications requiring extreme cleanliness and frequent washdowns When food, beverage or pharmaceutical production plants are washed down, the motors – along with other parts – are often subjected to high pressure water jets (sometimes at high temperatures) or even more aggressive cleaning agents. HYW stainless steel motors can withstand this operating condition, that on the contrary can cause damage to other kind of motor, or even contaminate the end product. •Wide terminal box - easy installation •Leading wires are potted by hygienic epoxy, which can prevent water from getting into the motor •Condensation could be easily drained by removing the drain caps at both Drive End and Non •Drive End sides, you even don’t need to remove the fan cowl •No cooling fins, complete smooth surface •No paint to chip or flake and no surface that will rust •Rating plate is engraved on the outer Non Drive End cover to reduce areas where bacteria can lurk •The ss grade shaft mitigates unwanted magnetic flux •Sealing with Viton O-Ring on all couplings •“INVERTER DUTY OPERATION” – 4:1 Constant Torque (CT) / 10:1 Variable Torque (VT) •Hygienic Cable Gland Certified by European Hygienic Engineering and Design Group •Completely Smooth Surfaces Guarantee the Highest Needs on Ultra-hygienic Clean Lines •Thanks to the low losses electromagnetic design and excellent process, the surface temperature of motor is low enough, nobody will be scalded by the hot motor
