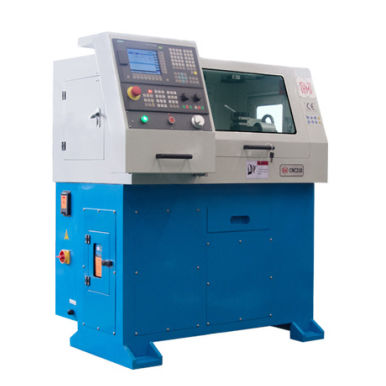

CNC lathe 210horizontal2-axis
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Spindle orientation
- horizontal
- Number of axes
- 2-axis
- Diameter
210 mm
(8.27 in)- Axe X
90 mm
(4 in)- Axe Z
300 mm
(12 in)- Rapids on X
2,000 mm/min
(1 in/s)- Rapids on Z
2,000 mm/min
(1 in/s)- Nominal power
1.1 kW
(1.5 hp)- Overall lenght
1,185 mm
(47 in)- Overall width
930 mm
(37 in)- Overall height
1,440 mm
(57 in)- Weight
300 kg
(661 lb)
Description
Max Swing Over Carriage
100mm
X Motor Torque
2NM
Max Length of Work Piece
250mm
Y Motor Torque
2NM
Spindle Bore
26mm
Minimum Setting Unit
0.001mm
Spindle Taper
MT4
Tailstock Diameter
22mm
Tailstock Travel
50mm
Tailstock Taper
MT2
Overall Size
1185*930*1440mm
