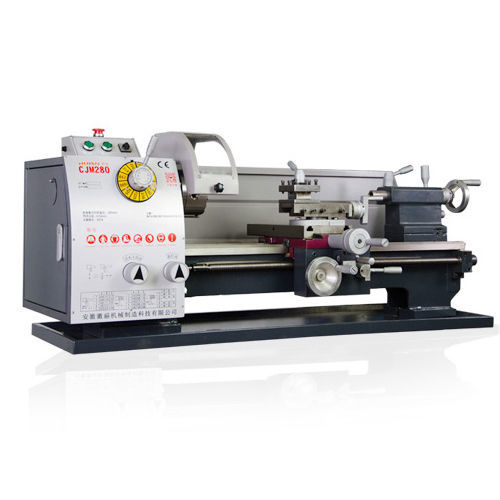

CNC lathe CJM280
horizontal2-axispowerful

CNC lathe - CJM280 - HUISN CO., LTD. - horizontal / 2-axis / powerful
CNC lathe - CJM280 - HUISN CO., LTD. - horizontal / 2-axis / powerful
CNC lathe - CJM280 - HUISN CO., LTD. - horizontal / 2-axis / powerful - image - 2
CNC lathe - CJM280 - HUISN CO., LTD. - horizontal / 2-axis / powerful - image - 3
CNC lathe - CJM280 - HUISN CO., LTD. - horizontal / 2-axis / powerful - image - 4
Add to favorites
Compare this product


Characteristics

Control type
CNC
Spindle orientation
horizontal
Number of axes
2-axis
Performance
powerful
Diameter

280 mm
(11.02 in)

Spindle speed

Max.: 1,600 rpm
(10,053.096 rad.min-1)

Min.: 80 rpm
(502.655 rad.min-1)

Nominal power

750 W
(1 hp)

Description

Range Of Metric Threads 0.25-2.5mm Distance Between Centers 610mm Range Of Imperial Threads 12-96 Carriage Slide Centers 160mm Longitudinal Feed On Spindle Toolpost 0.035-0.375mm/R Spindle Bore 26mm Cross Feed On Spindle Toolpost 0.015-0.188mm/R Spindle Taper MT4 Tailstock Sleeve Travel 85mm Maximum Lateral Carriage Slide Travel 130mm Tailstock Sleeve Taper MT2 Maximum Tool Longitudinal Travel 65mm Spindle Speed Step 12 Number Of Machining Metric Threads 15 Number Of Machining Imperial Threads 10
