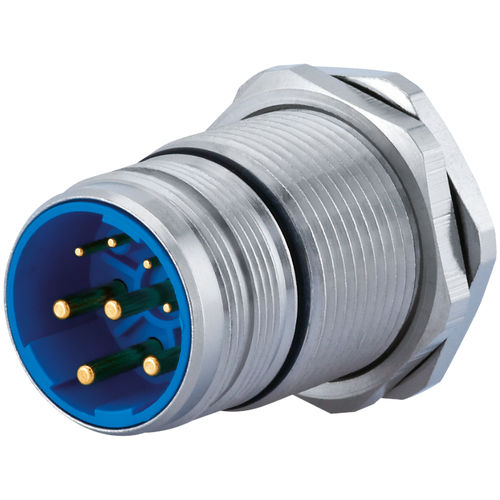

Hybrid connector 7.651.000.000DINcircularplug-in
Add to favorites
Compare this product
Characteristics
- Type
- hybrid
- Format
- DIN
- Shape
- circular
- Connection type
- plug-in, screw-locked
- Size
- M23, M25
- Material
- copper, zinc
- Product applications
- housing, external thread, for panels
- Protection class
- IP67, IP69K
- Operating temperature
Min.: -40 °C
(-40 °F)Max.: 125 °C
(257 °F)
Description
23 Hybrid Typ 1 panel connector
Material housing - Copper-Zinc alloy
Material housing surface - Nickel
Installation type - Rear wall
External thread (AG) - M25 x 1,5
External thread plug-in side - M23 x 1
Locking type - Screw
Shield - unshielded
Material seals/o-rings - NBR
Panel hole - Ø 25 + 0,1 mm
Drill form - D 24,1 + 0,1,
D Ø 25 + 0,1 mm
Wrench size (SW) - 29 mm
