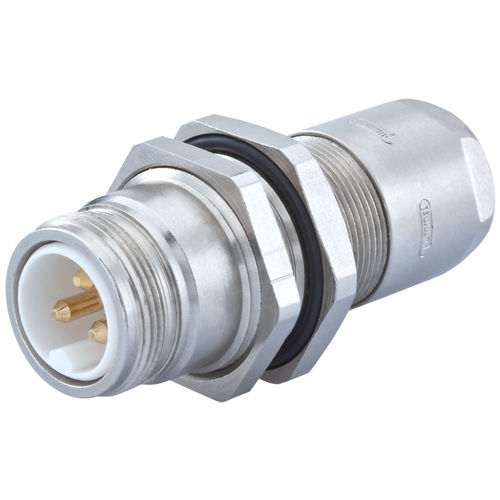

Panel connector 7.852.400.000datacircularplug-in
Add to favorites
Compare this product
Characteristics
- Type
- data
- Shape
- circular
- Connection type
- plug-in, screw-locked
- Size
- M16
- Material
- copper, zinc, aluminum alloy
- Product applications
- external thread, panel
- Protection class
- IP67, IP69K
- Operating temperature
Max.: 125 °C
(257 °F)Min.: -40 °C
(-40 °F)
Description
M16 panel connector
Material housing - Aluminium alloy,Copper-Zinc alloy,Zinc Die Cast
Material housing surface - Nickel
External thread plug-in side - M16 x 0,75
Locking type - Screw
Shield - shielded
Material seals/o-rings - FKM (FPM),NBR
Panel hole - Ø 18,6 + 0,1 mm
Wrench size (SW1/SW2/SW3) - 15/22/21 mm
Cable diameter - 5 – 9 mm
