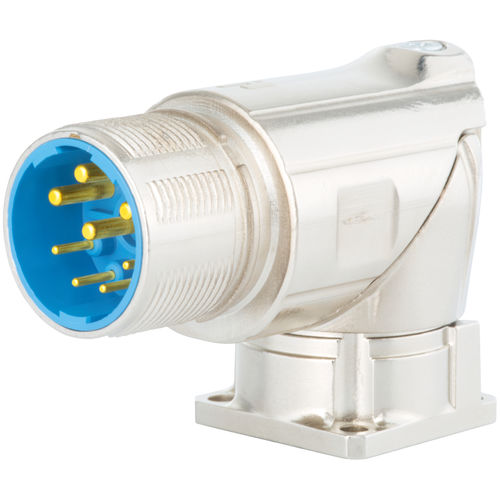

Hybrid connector 7.639.000.000DINright-anglecircular
Add to favorites
Compare this product
Characteristics
- Type
- hybrid
- Format
- DIN
- Shape
- right-angle, circular
- Connection type
- plug-in, flange, screw-locked
- Size
- M23
- Material
- die-cast zinc
- Product applications
- housing, external thread
- Protection class
- IP67, IP69K
- Operating temperature
Min.: -40 °C
(-40 °F)Max.: 125 °C
(257 °F)
Description
M23 Hybrid Typ 1 panel connector
Housing type - Panel angled
Material housing - Zinc Die Cast
Material housing surface - blue passivated
Version - right angled,TWILOCK
External thread plug-in side - M23 x 1
Locking type - Screw
Shield - unshielded
Seal type - O-Ring
Material seals/o-rings - FKM (FPM)
Rotatable - 330 °
Panel hole - Ø 20 + 0,1 mm
Flange - 25,6 x 25,6 mm
Hole distance - 19.8 mm
Hole diameter - 4 x Ø 3,2 mm
