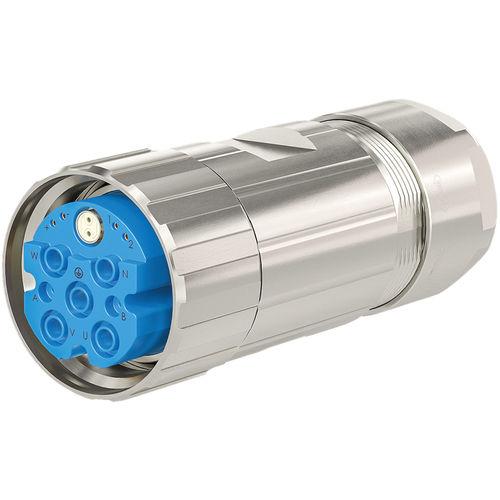

Hybrid connector 7.71 SeriesSocketcircularcrimp
Add to favorites
Compare this product
Characteristics
- Type
- hybrid
- Format
- Socket
- Shape
- circular
- Connection type
- crimp, plug-in, screw-locked
- Size
- M40
- Electrical characteristics
- shielded
- Material
- die-cast zinc
- Product applications
- housing, cable, internal thread
- Domain
- industrial
- Protection class
- IP67, IP69K
- Other characteristics
- shielded
- Primary current
Max.: 55 A
Min.: 1.2 A
- Voltage
Max.: 600 V
Min.: 30 V
- Operating temperature
Max.: 125 °C
(257 °F)Min.: -40 °C
(-40 °F)
Description
Housing type - Cable
Material housing - Zinc Die Cast
Material housing surface - Nickel
Insert - Socket
Version - for socket inserts,
with knurled nut
Internal thread plug-in side - M40 x 1,5
Knurled nut-Ø plug-in side - 46 mm
Locking type - Screw
Shield - shielded
Seal type - O-Ring
Material seals/o-rings - FKM (FPM),NBR
Cable diameter - 13 – 18 mm
Length (L) - 111.2 mm
Wrench size (SW1/SW2) - 40/38 mm
