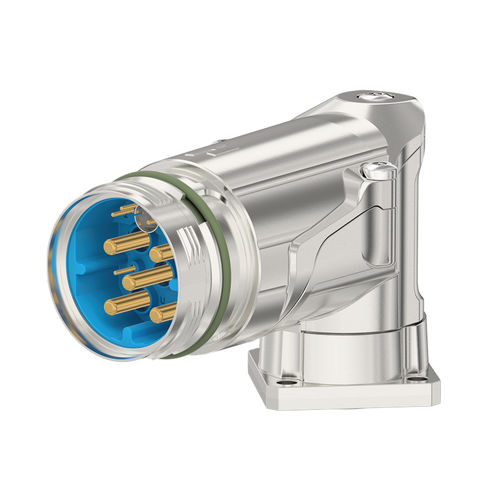

Hybrid connector 7.749.06 seriesright-anglecircularcrimp
Add to favorites
Compare this product
Characteristics
- Type
- hybrid
- Shape
- right-angle, circular
- Connection type
- crimp, plug-in, flange
- Size
- M40
- Electrical characteristics
- insulation
- Material
- die-cast zinc
- Product applications
- housing, cable, external thread, panel
- Protection class
- IP67, IP69K
- Primary current
Max.: 55 A
Min.: 1.2 A
- Voltage
Max.: 600 V
Min.: 30 V
- Operating temperature
Max.: 125 °C
(257 °F)Min.: -40 °C
(-40 °F)
Description
Housing type - Panel angled
Material housing - Zinc Die Cast
Material housing surface - blue passivated
Insert - Pin
Version - right angled,TWILOCK-S
External thread plug-in side - M40 x 1,5
TWILOCK thread - M40 x 1,5
Shield - unshielded
Seal type - O-Ring
Material seals/o-rings - FKM (FPM),
HNBR
Rotatable - 330 °
Panel hole - Ø 32 + 0,1 mm
Flange - 40 x 40 mm
Hole distance - 30 mm
Hole diameter - 4 x Ø 4,5 mm
Length (L) - 103 mm
Allen key/Torx - T20
Wrench size (SW1/SW2) - / mm
Degree of Protection - 3
Protection class - IP 67,IP 69 K
Characteristic of connection - Crimp
Number of poles - 13
Pole picture - 2 + 6 + 4 + PE
Color Ethernet insert - white
Color contact insert - blue
Material insulating body - PBT
Material Ethernet insert - PA 6
Number of contacts data - 2
Number of contacts signal - 6
