Nickel-plated brass cable gland HSK-MZ-PVDF-Ex
IP68IP69Kexplosion-proof

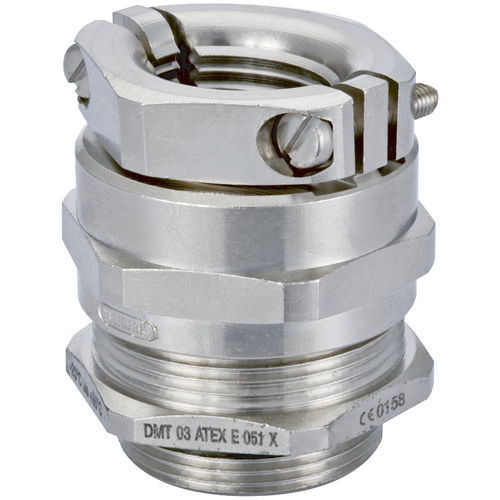

Nickel-plated brass cable gland - HSK-MZ-PVDF-Ex - HUMMEL - IP68 / IP69K / explosion-proof
Nickel-plated brass cable gland - HSK-MZ-PVDF-Ex - HUMMEL - IP68 / IP69K / explosion-proof
Add to favorites
Compare this product

Go to the HUMMEL website for more information

Characteristics

Material
nickel-plated brass
Protection level
explosion-proof, IP68, IP69K, chemical-resistant
Other characteristics
PG thread, metric, strain relief, high-temperature, for the chemical industry
Cable diameter

Min.: 3 mm
(0.12 in)

Max.: 44 mm
(1.73 in)

Operating temperature

Min.: -20 °C
(-4 °F)

Max.: 130 °C
(266 °F)

Description

Cable gland made of nickel plated brass with additional strain relief and bend protection for chemical and high temperature applications Clamping insert - PVDF Seal - FKM Material o-ring - FKM Protection class - IP68 - 10bar/30min,IP 69 K Type Rating by - 4,4X,6,UL 50E Ex-protection level - II 1D Ex ta IIIC Da,II 2G Ex eb IIC Gb Variant - Metric,PG,NPT
