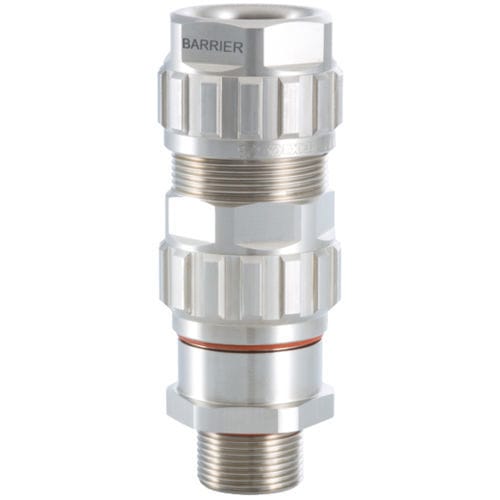

Brass cable gland EXIOS +Barriernickel-plated brassstainless steelIP66
Add to favorites
Compare this product
Characteristics
- Material
- nickel-plated brass, brass, stainless steel
- Protection level
- explosion-proof, IP68, IP66, IP65, for hazardous areas
- Other characteristics
- metric, for extreme conditions
- Operating temperature
Min.: -60 °C
(-76 °F)Max.: 85 °C
(185 °F)
Description
Cable gland for use in "Hazardous Areas". A sealing compound provides a seal around each individual cable core.
Seal - VMQ (silicone)
Material o-ring - VMQ (silicone)
Clamping insert - Polyamide 6
Armour - Metallic armour or screen
Compound - Two-component epoxy compound
Protection class - IP 66,IP 67,IP 68 - 5bar/30min
Ex-protection level - Class I Div 2 Groups A,B,C,D,
Class II Div 1 Groups E,F,G,
I M2 Ex de,
I M2 Ex ta IIIC Da,
I Mb IIC Gb
Variant - NPT,Metric
