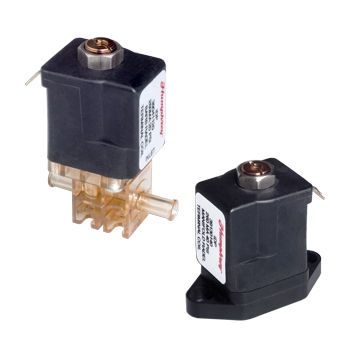

Proportional solenoid valve iDP Series
direct-operated2/3-way3-way

proportional solenoid valve
proportional solenoid valve
Add to favorites
Compare this product


Characteristics

Control
direct-operated
Ports/positions
2/3-way, 3-way, 2-way
Function
NC
Medium
for potable water, for hot water, for gas
Body
plastic, small, flange, seat, manifold, compact
Other characteristics
manifold, high-flow, proportional, diaphragm, low-pressure, for chemicals, switching, wear-resistant, for aggressive media, media separated, total isolation, high-performance, chemically inert, high-temperature, plug, variable-flow
Voltage

24 V

Temperature

Max.: 95 °C
(203 °F)

Min.: -20 °C
(-4 °F)

Pressure

Max.: 2,068.6 Torr

Min.: -700 Torr
(-13.5 psi)

Description

Humphrey iDP Series are efficient direct acting solenoid valves containing features ideal for aggressive media applications (gas and liquid). Constructed of material suitable for bodily fluids, aggressive chemicals and cleaning fluids, and elevated liquid temperatures. The rolling diaphragm-poppet design isolates the solenoid from media penetration, while inert body material ensures long life and sustained performance. Made in USA.
