Biogas torch

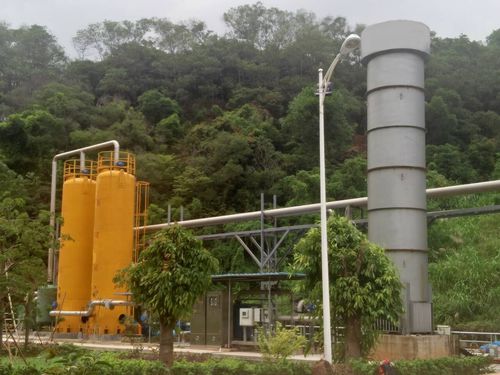

Biogas Torch Hunan Along New Energy Technologies Co., Ltd is committed to manufacture and supply high quality biogas torch. Our biogas torch is in cylindrical tower structure,consists of tower body, burner, ignition system, control system and valve&pipe assembly. The top of torch body is equipped with a wind-proof cap. It has the following characteristics: 1.Capacity 50~3000 m³/hr available, load adjustment ratio up to 1:10; 2.Main material is stainless steel 304, while the burner adopts stainless steel 310S (06Cr25Ni20) material; 3.torch shell is stainless steel, the middle layer is insulation material, while the liner is special refractory of high temp resistance; The temperature of torch appearance does not exceed 60 degrees Celsius when in full-loading condition; 4.The combustion of biogas occurs in the enclosure and no flame at top of torch; 5.torch can be operated manually or automatically or both combined with function of remote controlling available; 6.Burner and flame arrester can prevent the occurrence of tempering; 7.The solenoid valve would be open or closed automatically when the pressure signal from pressure switch is received by system; 8.Biogas supply would be cut off automatically when flame signal can not be detected by the flame detecting system; 9.Automatic electronic ignition.Constant lighting settled,which is always on working to ensure the success rate of ignition and would be closed only when the pressure is too low. 10.Combustion efficiency 99%, Noise level 60 dB.
